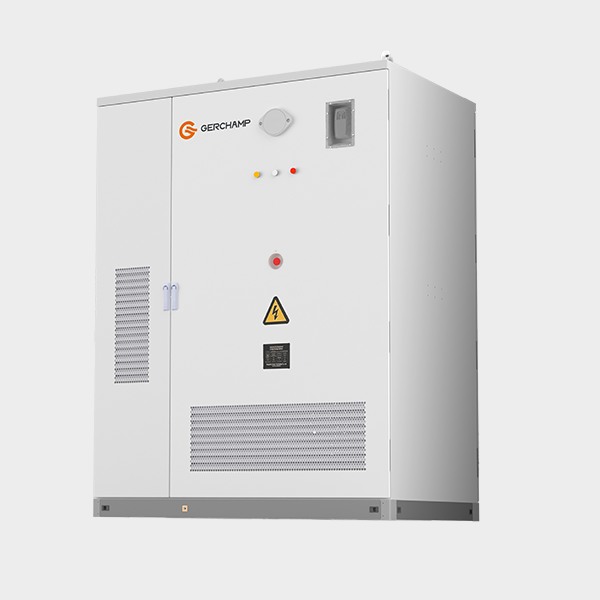

HC-PP135E215FS

PV Hybrid & Backup ESS

All-in-One 135kW / 215kWh +2*30kW (MPPT)

HC-PP135E215FS

Features:

Ultimate Integration

Enhanced Efficiency

Smart Energy Management

Diverse Application

All-in-one module integrates BMS, PCS, EMS and HV Box with 4-core ARM A9.
Twin 30kW DC-coupled MPPT inverters for higher PV efficiency and safety.
Intelligent TOU arbitrage, demand control, reverse power limit and remote scheduling.
250kW STS seamless switch enables on/off-grid mode and emergency backup.

Technical Parameters

Item			Description
DC side	Cell type		LFP (3.2V / 280Ah)
	Nominal voltage range		672V-864V
	Nominal capacity		215kWh
AC side	Nominal power / voltage / frequency		135kW / 380VAC / 50Hz
	Nominal voltage range		375~415VAC
	Max current		213A
	Total harmonic current distortion		≤5%
MPPT (PV inverter)	Solar panel nominal voltage input		700VDC
	Solar panel input voltage range		300VDC~825VDC
	Solar panel input current range		0~50A
	Max output power		30kW
	Conversion efficiency (at full load)		>95.5%
STS (on / off-grid static transfer switch)	Nominal grid voltage / frequency / wiring		380VAC / 50Hz / 3-phase 3-wire
	Nominal power / max current		250kW / 334A
	Switch time		≤5ms
System parameter	Electrical parameter	Nominal charging / discharging power	<0.62P
		Communication protocols	CAN, TCP, RS485, 4G
		EMS strategy	Peak load shaving, demand control, reverse power protection, active & reactive power control, grid / remote scheduling, DC-coupled MPPT, on / off-grid mode switch
	Environmental parameter	Temperature control method	Air-cooling
		Fire suppression system	Aerosol, water fire suppression system, composite detector, sound alarms, explosion venting,and accident ventilation
		Protection level	IP54
		Noise	≤75dB
		Operating altitude	≤2000m (derating above 2000m)
		Operating temperature	-20°C~50°C (derating above 45°C)
		Operating humidity range	0-95% (non-condensing)
		Weight	<3000kg
		Dimension (WHD)	1630mm2200mm1300mm
