Ubit

U Space Manager

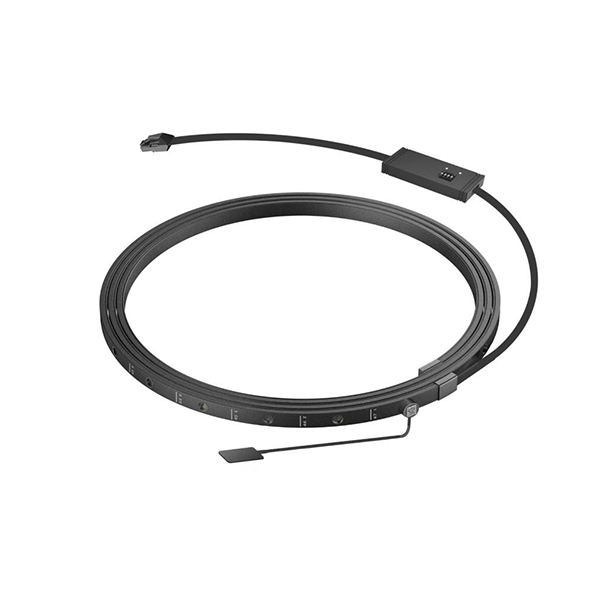

The Ubit series U Space Manager is designed for cabinet asset management, paired with U-position electronic tags for unique asset identification. Uploads real-time asset location data to the central platform, supports precise tracking, automated inventory, and cabinet capacity calculation. Integrated U-position indicator lights reflect assets status, providing clear on-site guidance to support efficient online and offline operations.

Features:

Easy Installation

Stable and Reliable

Operational Visibility

Flexible Expansion

Magnetic mounting, smallest footprint, seamless integration in any cabinet.
Integrated flexible PCB and ring topology for higher reliability.
On-site LED lights for instant asset location and status visibility.
Supports RFID tags, door heatmaps and extra environmental sensors.

Get A Quote

Download PDF

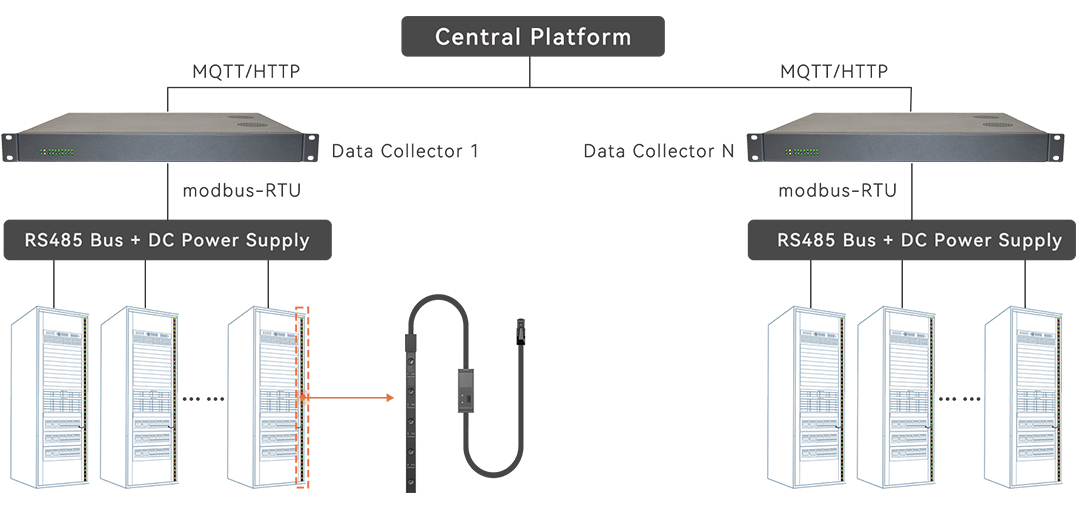

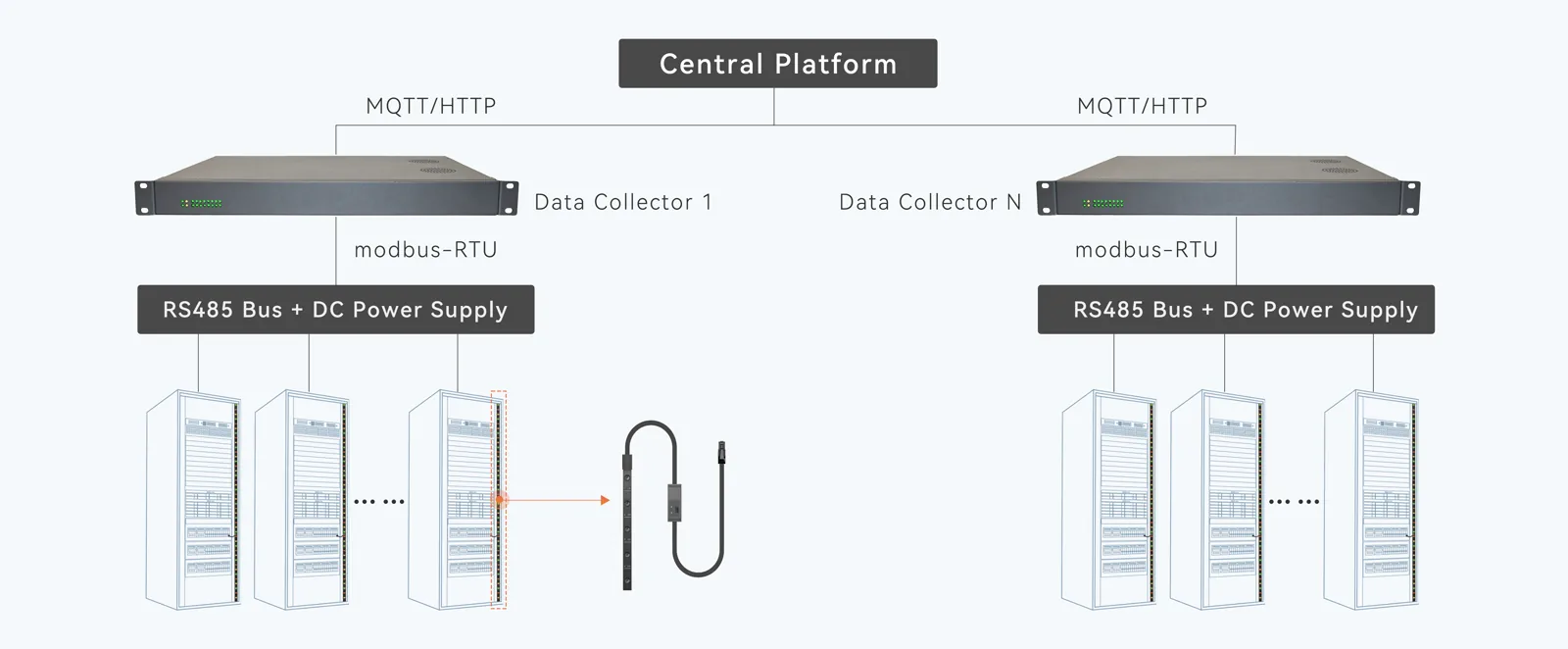

Topology

Technical Parameters

Item			Description
Electrical performance	Dimension of controller		65mm25mm10mm
	Dimension of the rack unit detection strip		16mm*6.5mm, lengths: 42U, 47U, 53U (customizable)
	Material		ABS plastic
	Color		Black
	Rack unit indicator light		Color: red, blue, purple
			Mode: steady on, blinking, rapid flashing
	Installation method		Magnetic attraction, no sticker required, can withstand a tensile force of no more than 8N
	Flexibility		Bendable, with a minimum bending diameter of 400mm
	Printing		Each rack unit is printed with forward and reverse rack unit numbering and a rack unit divider line
	Temperature and humidity	Quantity	3
		Range	Temperature: -10°C~65°C, humidity: 0%~100%RH
		Accuracy	Temperature: ±0.5°C, humidity: ±3%RH
Uplink port	Communication port		RS485
	Connector type		RJ45
	Communication protocol		Modbus RTU
