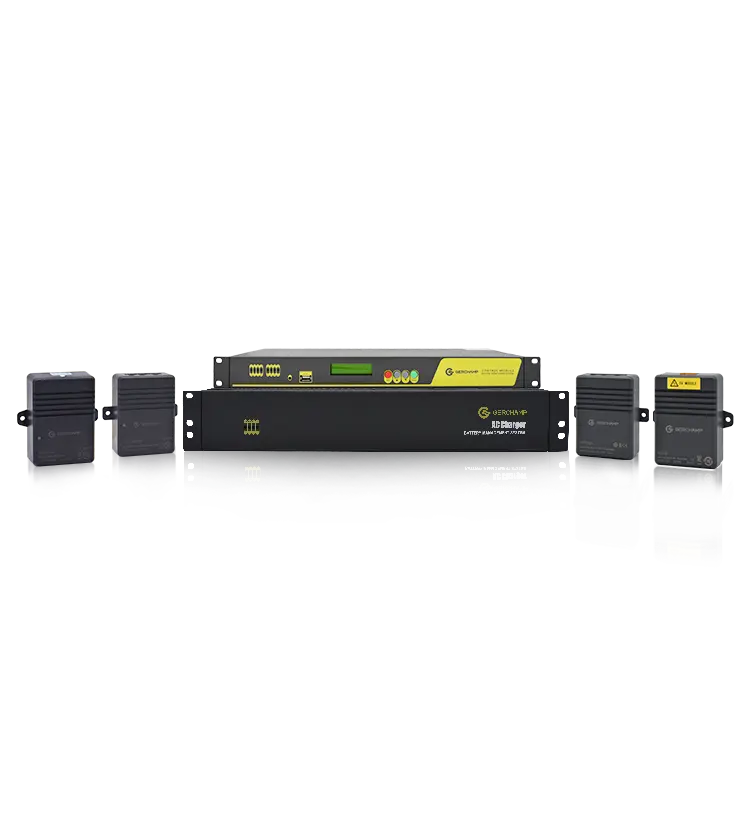

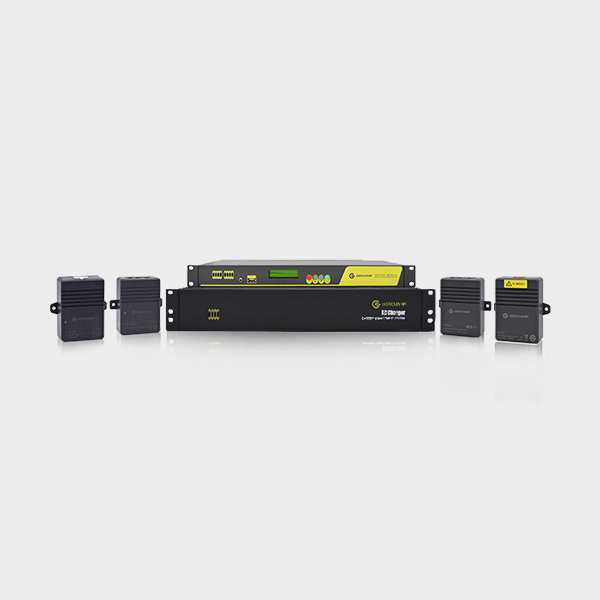

G-TIC-Z is designed for the comprehensive operation and intelligent maintenance of nickel-zinc batteries.

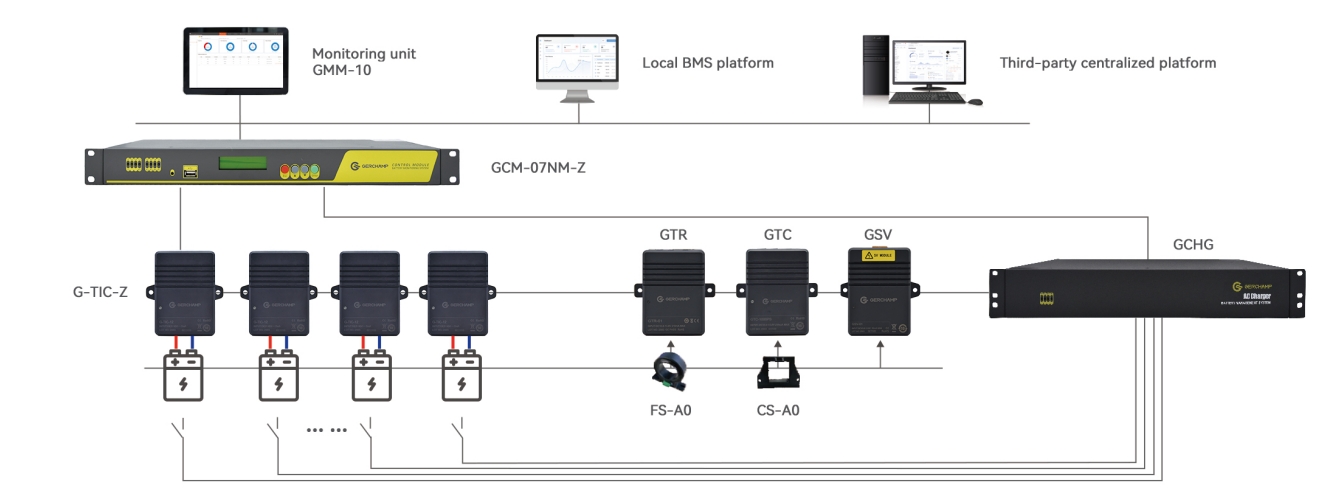

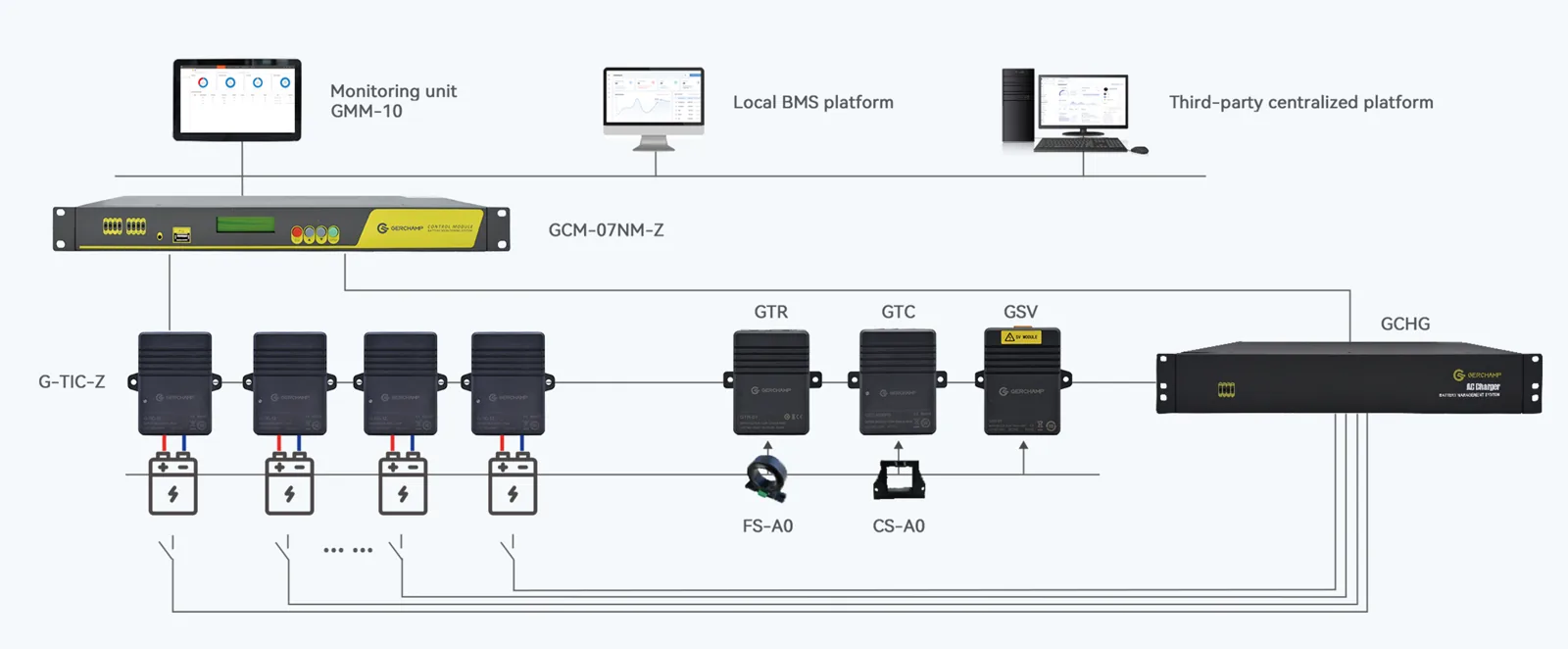

It uses a distributed architecture for real-time monitoring of key parameters including voltage, internal resistance, temperature, busbar voltage of individual batteries and total voltage, charge/discharge current of battery strings.
The system also features thermal runaway early warnings and integrates charging management.
Provides accurate and reliable data and eliminates manual maintenance risks
Full monitoring key parameters of individual cells and battery strings
Intelligent monitoring of battery performance and reports for actionable insights
Benefits | |
| Centralized &Intelligent Management | Support data collection,upload,storage and analysis as well as management of sub-modules via UART for system |
| Multi-level Alarms Support | Support alarm classification(up to four levels)and customized alarm configuration, as well as local sound and light alarm |
| Thermal Runaway Early Warning | Early warning of thermal runaway by accurately measuring changes in the float charge current of battery strings |
| Charging Performance | Charge 5 batteries at one time to realize the charging of the whole battery packs by switching the charging channel,ensuring the voltage difference is within the appropriate range |
Item | Tech Specification | ||
Power Consumption | Module | Powered By | Current Consumption |
| G-TIC-Z | Battery 5~16VDC (with reverse protection) | ≤10mA | |
GCHG | External power 100-240VDC | 120W | |
GHM-07NM | External power 100-240VDC | 15W | |
Item | Tech Specification | |
Environment | Operating temperature | -20~+60℃ |
Relative humidity | 5~95%RH | |
Atmospheric pressure | 80~110kPa | |
Altitude (above sea level) | 0~2000m | |
Storage | Built-in 8G storage capacity Storage period: More than 12 months Default storage interval: 60 seconds (adjustable) | |
Performance | Each string in charge of 96 cells at maximum | |
