Battery Management System

G-BS for ESS consists of a battery pack management unit (BMU module), battery cluster management unit (RCU module), system management unit (SCU module) and system display management unit (MM10 module). This lithium battery management system supports a maximum of 1500V energy storage system, and is certificated with UL, CE standards. Explore Gerchamp’s High voltage lithium battery BMS solution and contact us today to find out how we can help your energy storage needs.

Features:

G-BS for ESS-BMS（images 1）

3+1 Level Structure

G-BS for ESS-BMS（images 2）

Online Program Upgrade

G-BS for ESS-BMS（images 3）

Support Bidirectional IO Ports to Achieve Automatic Address Coding

G-BS for ESS-BMS（images 4）

Multi-ports Environment Supervision Devices Data Access

  • MM10 module; SCU module; RCU module; BMU module.
  • Support direct connection of USB flash disk to SCU module to upgrade ; Support EMS upgrade through SCU module via host computer.
  • The BMU module supports 2-way bidirectional l0 ports to send/receive instructions, all BMUs in a single cluster can be automatically encoded and the lO ports can support bidirectional blind insertion.
  • SCU modules support 3-channel isolated CAN communication, 3-channel LANcommunication,3-channel RS485 communication,1-channel RS232 communication Ports are reserved for to fully meet the access of other devices in the entire ESS.

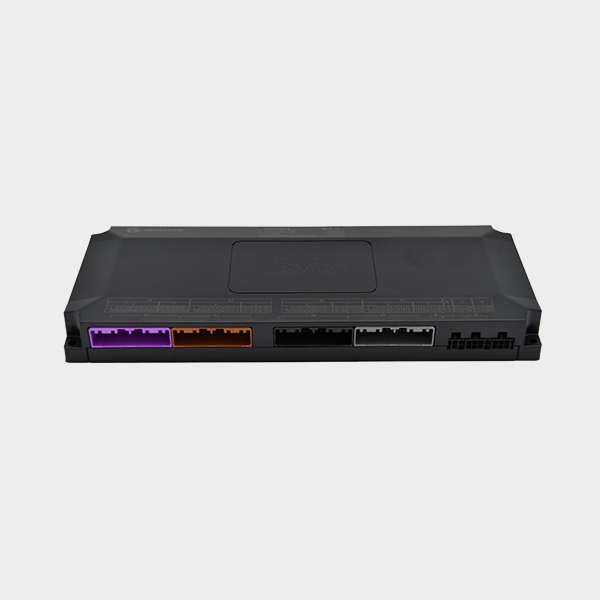

G-BS for ESS-BMS（images 5）
Get A Quote
Download PDF

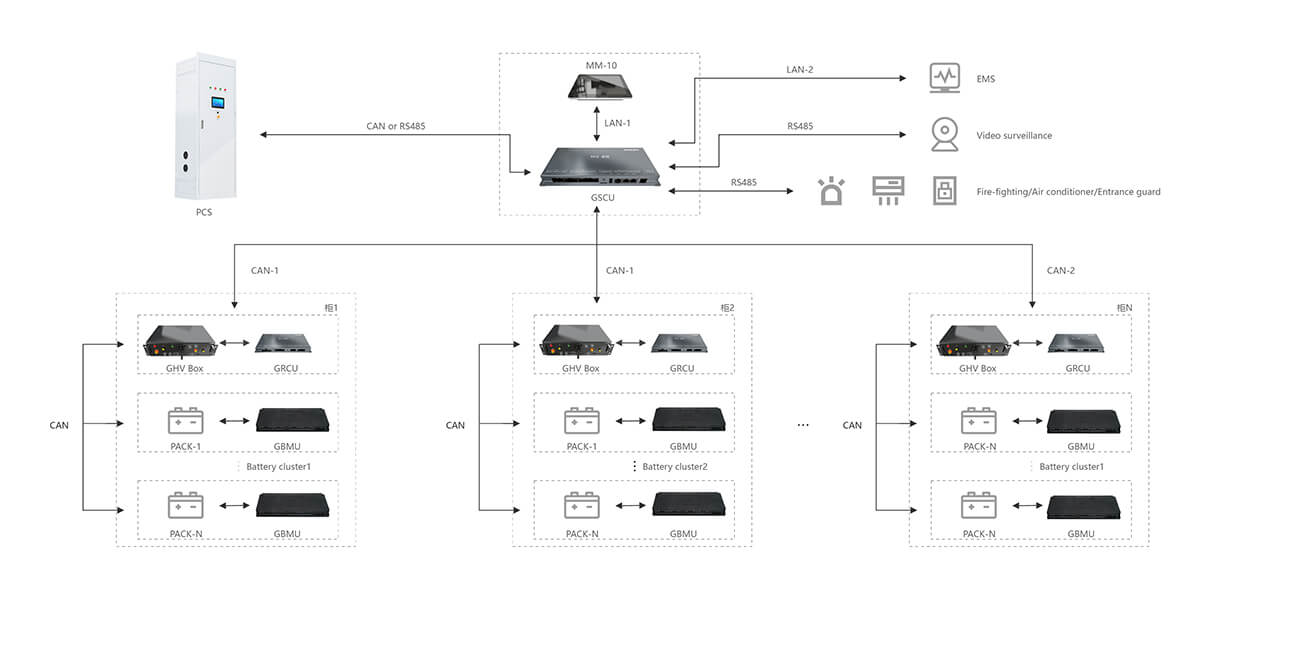

Topology

G-BS for ESS-BMS（images 6）

Technical Parameters

  Battery
Cell Type		Cell VoltageCell TemperatureCell Equalization
Range0~5VRange-40~125℃Current100mA/3.3V
Resolution1mvResolution0.1℃Equalization resistance33Ω
Accuracy≤5mvAccuracy≤1℃//
Cycle100msCycle200ms//
Channel4~24 stringsChannel0~12//
Battery
Pack Type		Total Voltage  Total CurrentInsulation MonitoringsocSOH
Range0~1500VRange-500~500ARange0~50MQRange0~100%Range0~100%
Resolution0.1VResolution0.1AResolution0.1KΩResolution1%Resolution1%
Accuracy<1000V(1%FS)
≥1000V(0.5%)		Accuracy<1%FSAccuracy<3%(500~1500V
and>600KΩ)		Accuracy<±5%Accuracy<±8%
Cycle100msCycle50msCycle8S//
ChannelTotal positive/
precharge		ChannelLarge/small
range/CAN		ChannelTotal positive/total
negative to pack case
Communication
Type		Ethernet RS485RS232CAN
Channel Qty3-channelChannel Qty4-channelChannel Qty1-channelChannel Qty2-channel
Communication rate10M/100MCommunication rate9600bpsCommunication rate9600bpsCommunication rate250Kbps
Electricalisolation3820VdcElectricalisolation3820VdcElectricalisolation3820VdcElectricalisolation3820Vdc
Support protocolModbusSupport protocolModbusSupport protocolModbusSupport protocolInternet protocol

Request a Free Quote

提交表单

G-BS

Battery Management System

G-BS for ESS-BMS（images 7）

G-BS for ESS consists of a battery pack management unit (BMU module), battery cluster management unit (RCU module), system management unit (SCU module) and system display management unit (MM10 module). This lithium battery management system supports a maximum of 1500V energy storage system, and is certificated with UL, CE standards. Explore Gerchamp’s High voltage lithium battery BMS solution and contact us today to find out how we can help your energy storage needs.

Features:

G-BS for ESS-BMS（images 8）

3+1 Level Structure

G-BS for ESS-BMS（images 9）

Multi-ports Environment Supervision Devices Data Access

G-BS for ESS-BMS（images 10）

Online Program Upgrade

G-BS for ESS-BMS（images 11）

Support Bidirectional IO Ports to Achieve Automatic Address Coding

  • MM10 module; SCU module; RCU module; BMU module.
  • Support direct connection of USB flash disk to SCU module to upgrade ; Support EMS upgrade through SCU module via host computer.
  • The BMU module supports 2-way bidirectional l0 ports to send/receive instructions, all BMUs in a single cluster can be automatically encoded and the lO ports can support bidirectional blind insertion.
  • SCU modules support 3-channel isolated CAN communication, 3-channel LANcommunication,3-channel RS485 communication,1-channel RS232 communication Ports are reserved for to fully meet the access of other devices in the entire ESS.
Get A Quote
Download PDF

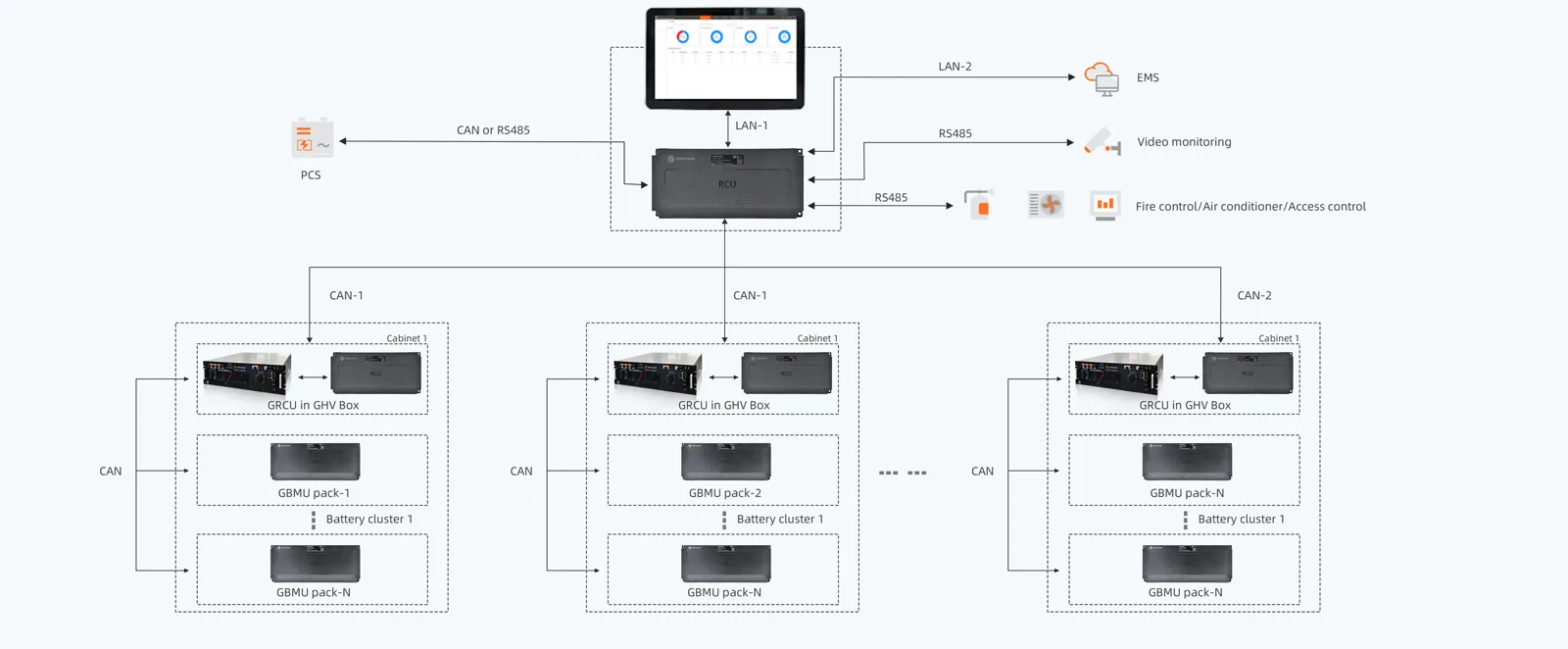

Topology
