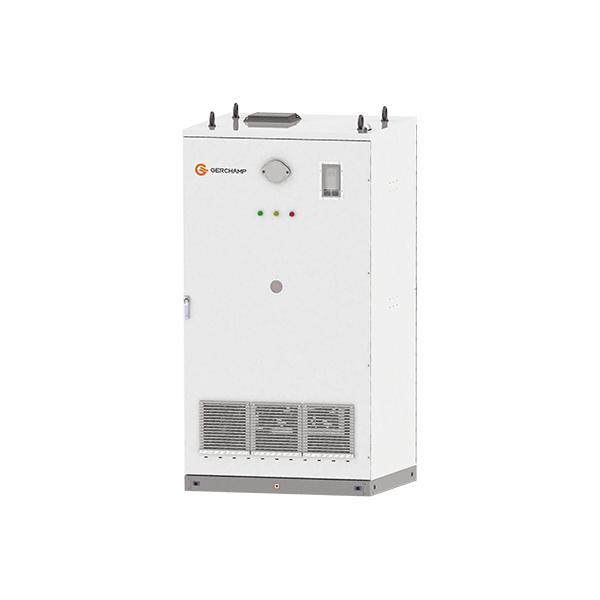

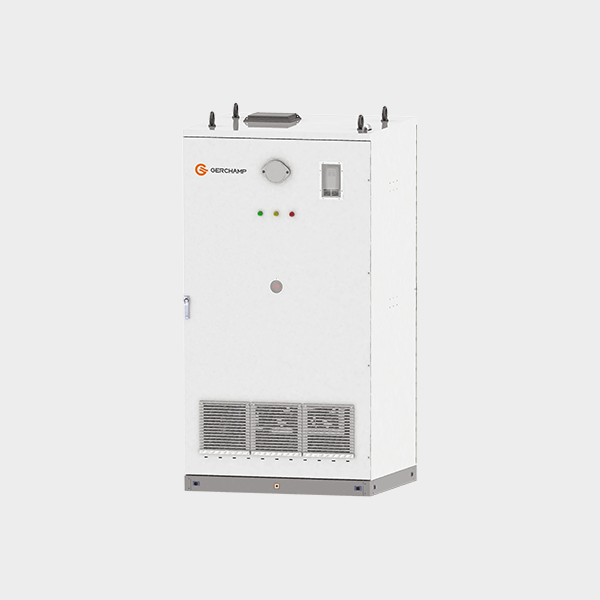

BMS, PCS, EMS, HV Box integrated in one compact module
Smaller space, less conversion loss, faster response
Unified system control with 4-core ARM A9 CPU
CE-compliant, IP54-rated for outdoor use
Multi-safety design & multi-protection assurance
Time-of-Use arbitrage, demand control, reverse power protection, grid & remote scheduling, and more
Remote monitoring and control via PC and mobile app
Compatible with external PV inverters
Ideal for office buildings, industrial parks and other commercial facilities
| Item | Description | ||||||||
| DC side | Cell type | LFP (3.2V / 280Ah) | |||||||
| Nominal voltage range | 672V-864V | ||||||||
| Nominal capacity | 215kWh | ||||||||
| AC side | Nominal power / voltage / frequency | 135kW / 380VAC / 50Hz | |||||||
| Nominal voltage range / max current | 375~415VAC / 213A | ||||||||
| Total harmonic current distortion | ≤5% | ||||||||
| System parameter | Electrical parameter | Nominal charging / discharging power | <0.62P | ||||||
| Communication protocols | CAN, TCP, RS485, 4G | ||||||||
| EMS strategy | Peak load shaving, demand control, reverse power protection, active & reactive power control, grid / remote scheduling | ||||||||
| Environmental parameter | Temperature control method | Air-cooling | |||||||
| Fire suppression system | Aerosol, water fire suppression system, composite detector, sound alarms, explosion venting, and accident ventilation | ||||||||
| Protection level | IP54 | ||||||||
| Noise | ≤75dB | ||||||||
| Operating altitude | ≤2000m (derating above 2000m) | ||||||||
| Operating temperature | -20°C~50°C (derating above 45°C) | ||||||||
| Operating humidity range | 0-95% (non-condensing) | ||||||||
| Weight | <2500kg | ||||||||
| Dimension (W*H*D) | 1180mm*2200mm*1300mm | ||||||||
