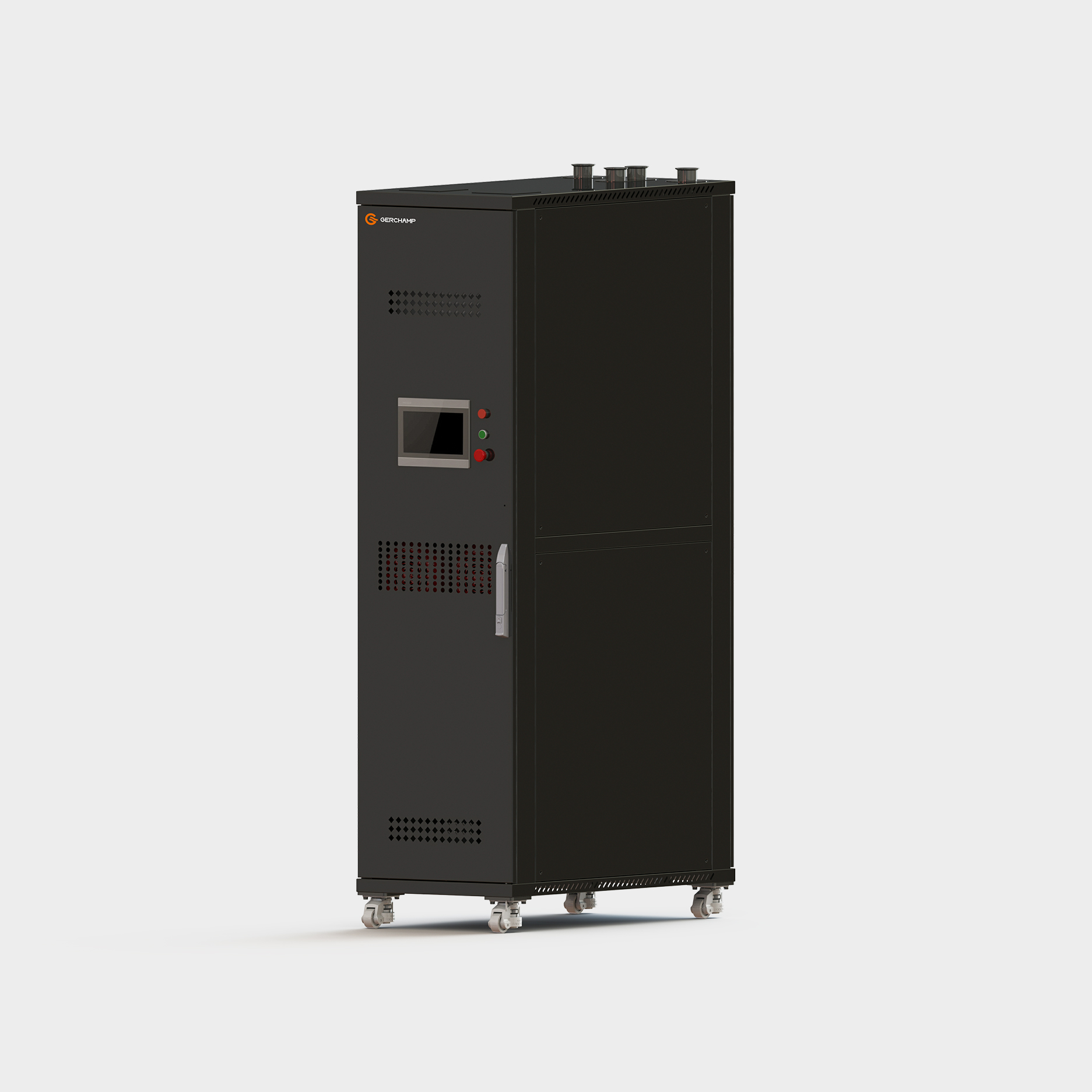

680kW/48U

L2L In-Row CDU

The 680 kW CDU is a liquid cooling unit that removes heat generated by equipment through the secondary-side heat exchange via a plate heat exchanger, and transfers the heat away through the primary-side chilled water loop.

Features:

Pump Redundancy

High Cooling Capacity In a Compact Footprint

Easy Maintenance Access

Flexible Movement and Handling

Adopts an N+1 pump configuration with cyclic switchover, ensuring continuous operation in case of single pump failure.
Features a highly integrated piping design, with a footprintof only 1200 x 600 mm （LxW）, and is capable of removing up to 680 kW of heat.
The electrical control cabinet adopts a tiltable structure. During maintenance, such as removing filter elements orreplacing pumps, the cabinet can be lifted via hydraulic supports, providing sufficient operating space.
Equipped with four heavy-duty casters at the base. The bottom structure allows for forklift handling for easy loading, and also enables flexible movement on the floor for convenient repositioning.

Get A Quote

Download PDF

Technical Parameters

Technical parameters	680kW / 48U / L2L CDU
Rated cooling capacity	680 kW @ 4.0°C ATD
Maximum flow rate – single pump operation	700L/min, external pressure difference 2.0bar
Maximum flow rate – dual pump operation for N+ redundancy	1050L/min, external pressure difference 3.4bar
Secondary coolant type	Pure Water or PG25
Pump redundancy	Single pump (N) / dual pump (N+N) / dual pump switchover
Primary pressure drop	0.8 bar (PG25) under typical conditions (650 L/min)
Secondary coolant temperature range	10–55°C, with dew point control standard
Maximum power consumption	4.5 kW (Single Pump) 7.3 kW (Dual Pump)
Dimensions (H × W × D) and weight	1900 × 600 × 1050 mm, 550 kg
Noise level at 3m (10ft)	< 54 dBA
Power supply (Europe, Asia and Taiwan)	3P 380-480 V 50/60 Hz
Dual power supply (ATS)	Optional features
Primary connections	Top or bottom, 2½-inch sanitary flange
Secondary connections	Top or bottom, 2½-inch sanitary flange
Secondary filtration	Optional 50um/20um
Communication	RS485 RTU modbus, TCP/IP SNMP
