G-TH WL

Battery Monitoring System

G-TH WL wireless battery monitoring system adopts a new generation of ZigBee wireless communication technology, which reduces on-site wiring by half and avoids hidden safety dangers of too many cables. It features convenient installation and shortens the on-site construction period. Certificated by CE standard, this BMS for lead acid battery is mainly applied in communication base stations, substations, enterprise data rooms, and other fields. Contact Gerchamp for reliable BMS for lead acid battery solutions. Reach out today to discover how we can enhance your battery performance.

Features:

ZigBee Wireless Communication

Real-time Data Monitoring and Alarming

Advanced Low Power Consumption Design

High-accuracy SOC/SOH (5) AI Data Analysis

Exclusive ZigBee wireless technology ensures reliable, low-loss communication for 600 cells.
Real-time monitoring of voltage, resistance and pole temperature with instant abnormality alarm.
Advanced low-power design keeps G-TH WL module current below 11 mA, far under industry average.
Online parameter identification + Kalman & fuzzy neural algorithm delivers ±5% SOC accuracy.

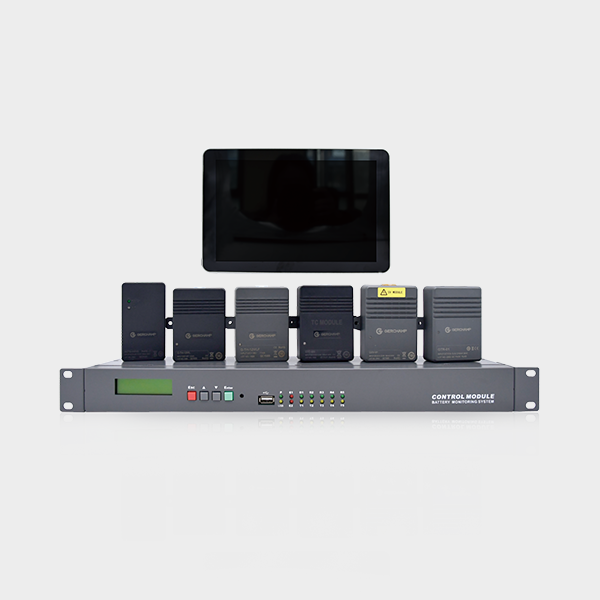

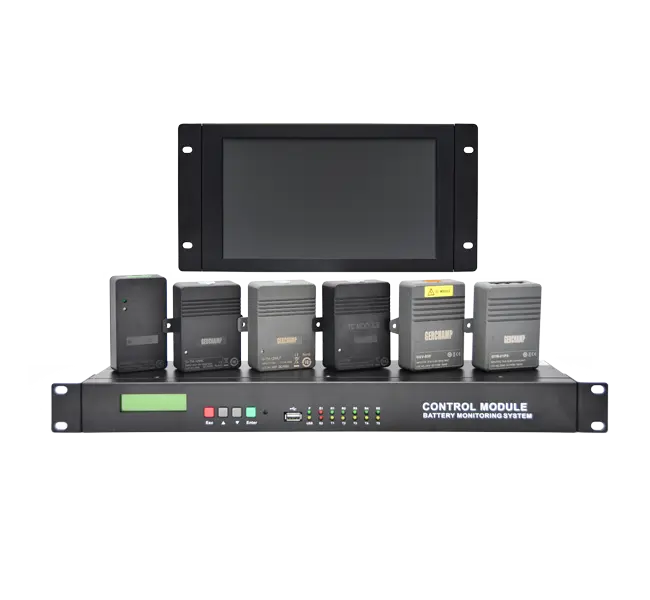

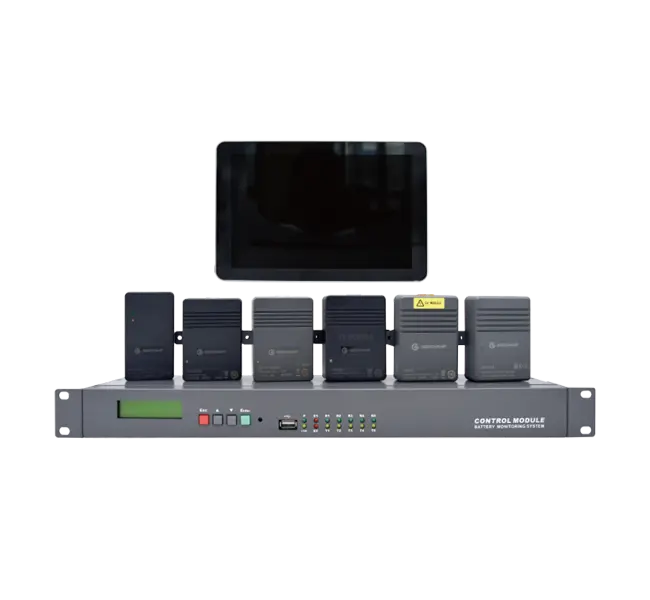

G-TH WL Wireless Battery Monitoring System（images 5）

Get A Quote

Download PDF

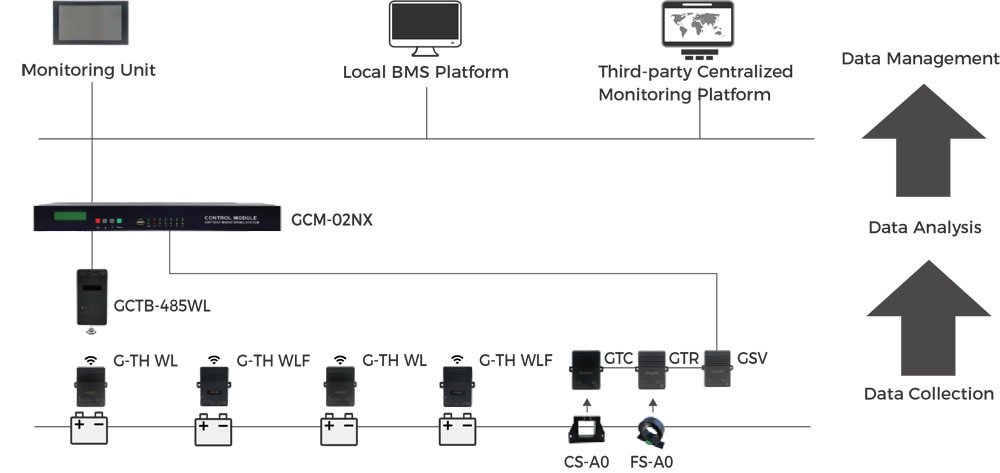

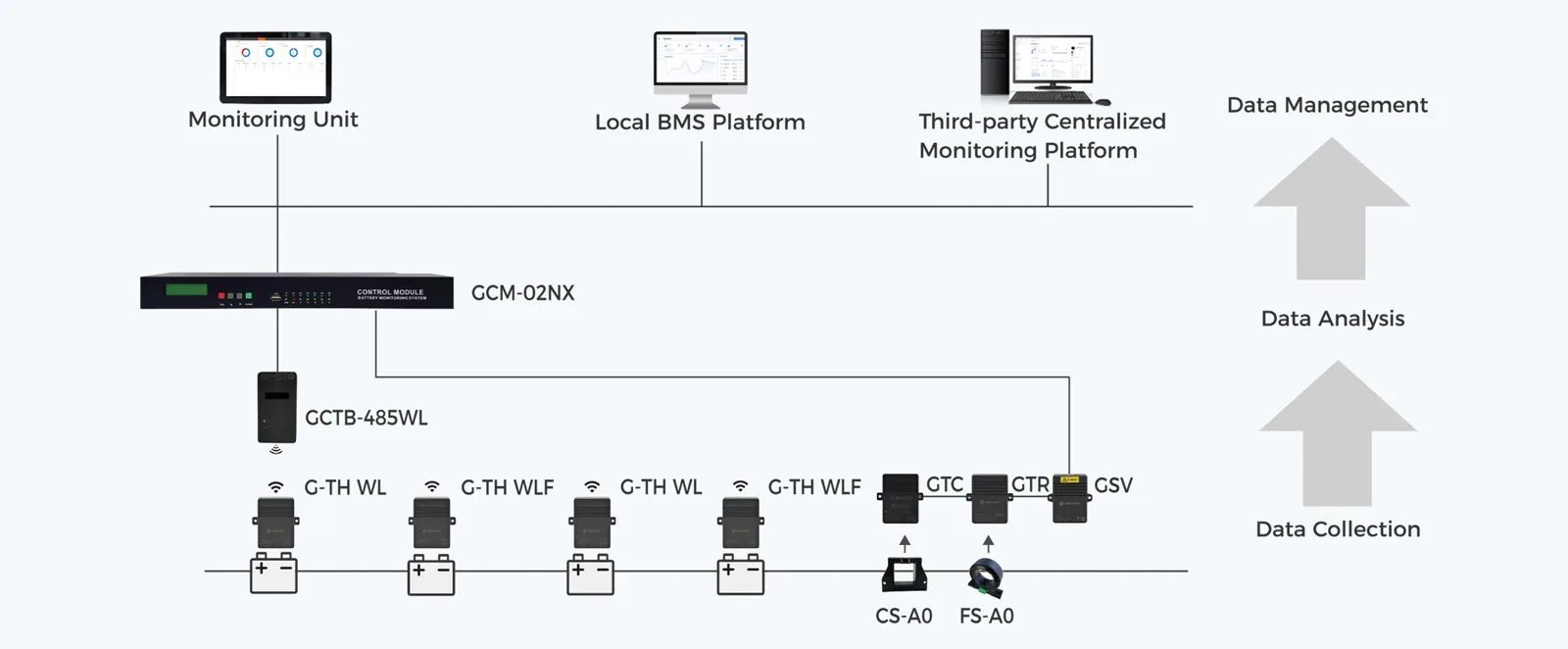

Topology

G-TH WL Wireless Battery Monitoring System（images 6）

Technical Parameters

Items	Name		Parameter
Environment	Operating temperature		-20~+60℃ (0~2000mASL)
	Relative humidity		5~95%
	Atmospheric pressure		80~110kPa
Reliability	Automatic restart trigger		Built-in WDT
	MTBF		100,000 hours
Certification	EMC	EN 55032: 2015+A11: 2020 EN 55035: 2017+A11: 2020 EN 61000-3-3: 2013+A1: 2019 ENIEC 61000-3-2: 2019
	RED	EN 301489-1V2.2.3 EN 301489-17 V3.2.4
	Safety	EN 61010-1:2010
	CE and TTL certification
Performance	Up to manage 6 strings, a total of 600 cells
Uplink Communictations Interfaces	RS485, LAN, dry contact Support MODBUS/RTU, TCP and SNMP protocols
Downlink Communictations Interfaces	Radio frequency communication ZigBee protocols

Items	Name	Parameter
Power Requirements & Consumption	Model	Powered By	Current	Consumption
	G-TH-02WL	Battery	≤20mA	<50mW
	G-TH-12WL	Battery	≤11mA	<200mW
	GTC	CM module or external power 10.8~13.8VDC	≤210mA	<2W
	GCTB-485WL	CM module or external power 10.8~13.8VDC	≤20mA	<0.3W
	GCM-02NX	100~240VAC (rated) 90~264VAC (max)	≤0.4A	<15W
Measuring Range & Accuracy	Measuring Content	Range	Accuracy	Resolution
	String Voltage	2V,12V	±0.5%	0.1V
	Cell Voltage	2V,12V	±0.1%	0.001V
	Cell Internal Resistance	50~65535 μΩ	±2% (repetitive accuracy)	1μΩ
	Temperature	-5~+99.9℃	±1℃	0.1℃
	Charge/Discharge Current	±1500A	±1%	0.1A
	SOC/SOH	–	±5%	1%
