GHV3S

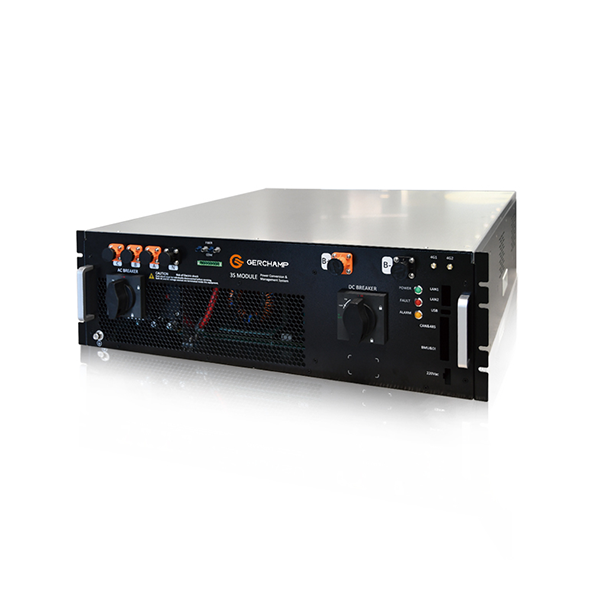

3S Module
GHV3S integrates BMS (battery management system), PCS(power conversion system), EMS(energy management system) and HV Box (high voltage box) in one module. The self-developed design can realize an intelligent synergy of the product, improve safety performance, save hardware cost, increase conversion efficiency, shorten the development cycle, and reduce the difficulty of operation and maintenance.
Features:
Low Cost
High Efficiency & Stability
Flexible Configuration
Convenient O&M

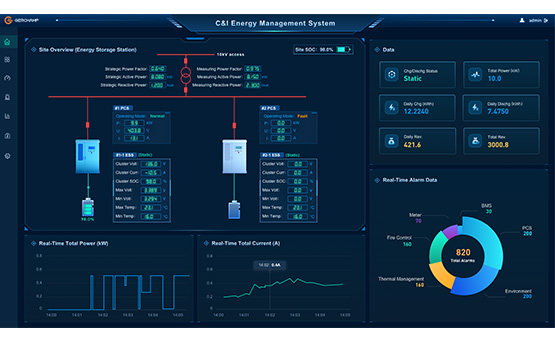

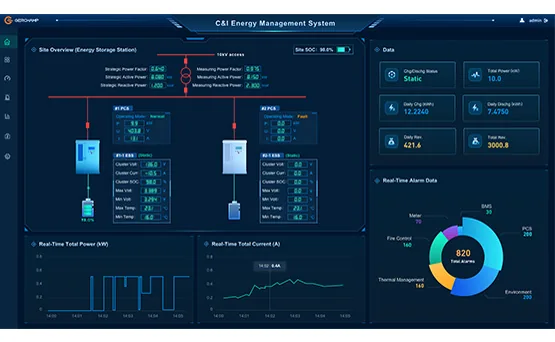

EMS Platform
The EMS platform is aimed to realize the centralized monitoring, operation and maintenance management. As an intelligent cloud platform, it provides data access of multiple energy storage sites based on unified collection and terminal control. The EMS is equipped with comprehensive functions such as real-time monitoring, data display,strategy control, operation analysis and revenue report analysis, contributing to a safe and long-term operation of C&I ESS with cost-reducing and efficient solution.
Technical Parameters
| Item | Description | GHV3S-P100U10F | GHV3S-P135U10F | |||||
| Power supply | Rated power supply | 220Vac | 100~240Vac | |||||
| Power consumption | <200W(without load) | |||||||
| System parameter | Maximum conversion efficiency | 98% | ||||||
| Dimension(L*W*H)/weight | 794*800*235mm/<82.55kg | 794*1000*235mm/<100kg | ||||||
| Cooling method | Air-cooling | |||||||
| Noise level | <75dB | |||||||
| Protection level | IP20 | |||||||
| Environment | Operating temperature/storage temperature /relative humidity | -20~+50℃/-40~+125℃/0~95%(non-condensing) | ||||||
| Altitude | <3000m | |||||||
| AC side | Rated AC power | 100kW | 135kW | |||||
| Wiring | 3-phase 3-wire (on-grid mode),3-phase 3-wire/3-phase 4-wire(off-grid mode) | |||||||
| AC overload capaclty | 10%overload | |||||||
| On-grid mode | Allowable voltage | 380/400Vac(-15%~15%) | 400Vac(-10%~15%) | |||||
| Allowable frequency | 50Hz(-2.5~2.5) | 50Hz(-0.5~0.5) | ||||||
| Total harmonic current distortion | ≤5% | |||||||
| Power factor | 0.99(-1~1) | (-1~1) | ||||||
| DC specification | Rated DC power | 100kW | 135kW | |||||
| Maximum DC current | 169A | 228A | ||||||
| DC access channel | 650~900V | 650~950V | ||||||
| Communication | / | 2-channel LAN,3-channel CAN(2-channel CAN 2.0,1-channel CAN FD), 4-channel RS485,1-channel RS232,2-channel fiber signal | ||||||
| Output port | 4-channel DO*L | Voltage range:9~32Vdc | ||||||
| Current:2.2A/single-channel at maximum and 1.1A continuously | ||||||||
| Single-channel DO*L rated power:26.4W | Single-channel DO*L rated power:26.4W Dual-channel DO*L total rated power:52.8W Four-channel DO*L total rated power:105.6W | |||||||
| Single-channel instantaneous power:192W | Single-channel DO*Linstantaneous power:192W Dual-channel DO*Linstantaneous power:384W Four-channel DO*L instantaneous power:768W | |||||||
| 4-channel dry contact output | Voltage:24Vdc/1A Electrical isolation:3000Vdc | |||||||
| 7-channel DI*Land 2-channel passive Dl | Low voltage range:<0.5VDC | |||||||
| Storage | Storage /internal memory /port | 8GB/2GB/1-channel USB port(USB2.0) | ||||||
Request a Free Quote
