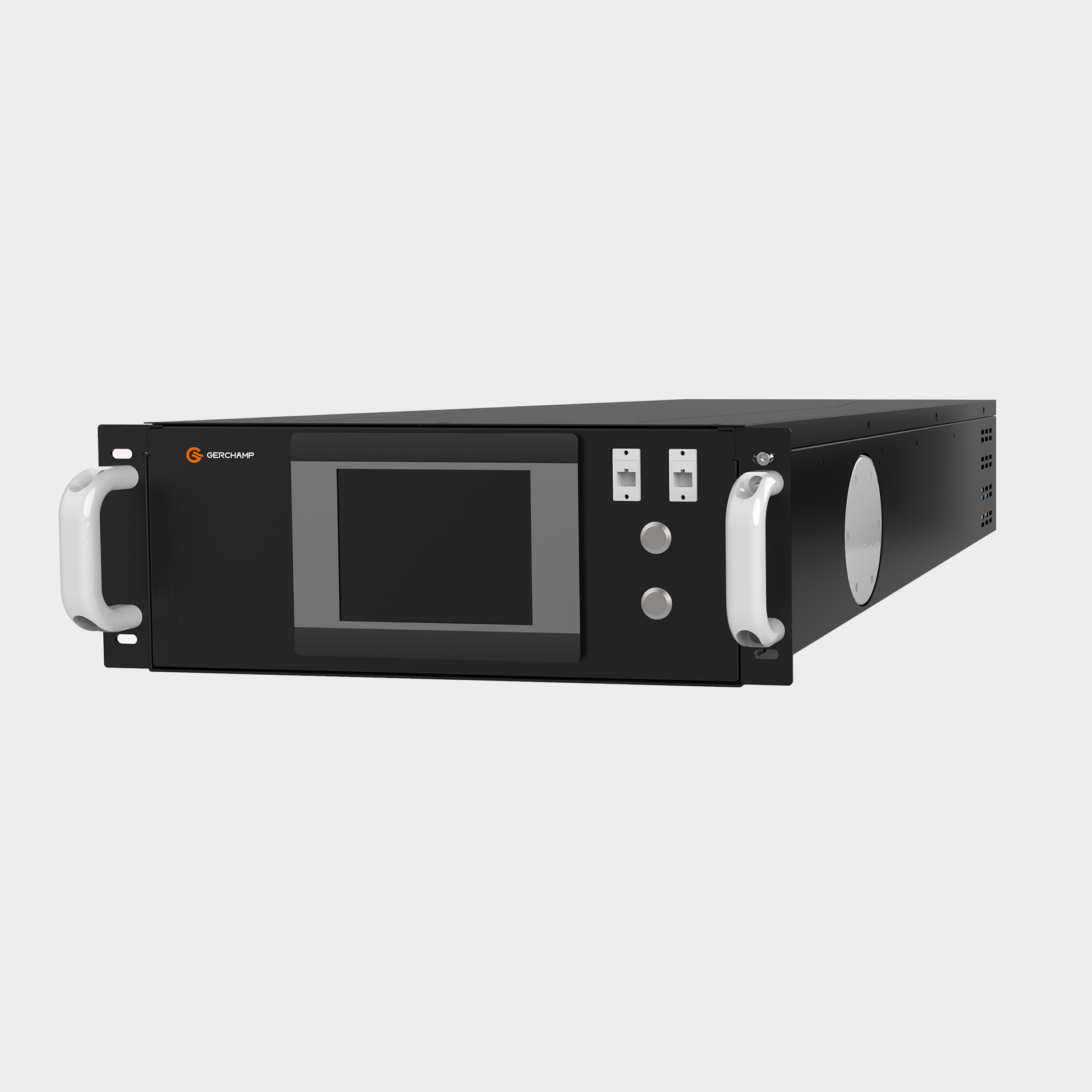

150kW/4U
L2L In-Rack CDU
The 150 kW 4U CDU is a compact liquid cooling core unit installed in a standard 19-inch server rack, with a height of 4U. The 4U CDU is an optimal solution for addressing the heat dissipation bottleneck of high heat density computing such as Al largemodels and high-performance computing (HPC). Within an extremely compact 4U space, it provides high cooling capacity, featuring high density, high efficiency, high reliability, and ease of deployment, and serves as a key infrastructure for the transition from air cooling to liquid cooling in data centers.
Features:
Pump Redundancy & Monitoring And Control
Rack-Mount Design
Technical Parameters
| Technical parameter | 150kW / 4U / L2L CDU |
| Rated cooling capacity | 152 kW @ 4.0°C ATD |
| Maximum flow rate – single pump operation | 152L/min, external pressure difference 2.0bar |
| Maximum flow rate – dual pump operation for N+ redundancy | 230L/min, external pressure difference 3.4bar |
| Secondary coolant Type | Pure water or PG25 |
| Pump redundancy | Single pump (N) / dual pump (N+N) / dual pump switchover |
| Primary pressure drop | 0.8 bar (PG25) under typical conditions (150 L/min) |
| Secondary coolant temperature range | 10–55°C, with dew point control standard |
| Maximum power consumption | 1.5 kW (Single pump) 2.7 kW (Dual pump) |
| Dimensions (H × W × D) and weight | 178 mm x 450 mm x 1055 mm, 90 kg |
| Noise level at 3m (10ft) | < 54 dBA |
| Power supply (Europe, Asia and Taiwan) | 220-270 V 50/60 Hz or DC48V |
| Dual power supply (ATS) | Optional features |
| Primary connections | Rear, 1-inch sanitary flange |
| Secondary connections | Rear, 1-inch sanitary flange |
| Secondary filtration | Optional 50um/20um |
| Communication | RS485 RTU modbus, TCP/IP SNMP |
