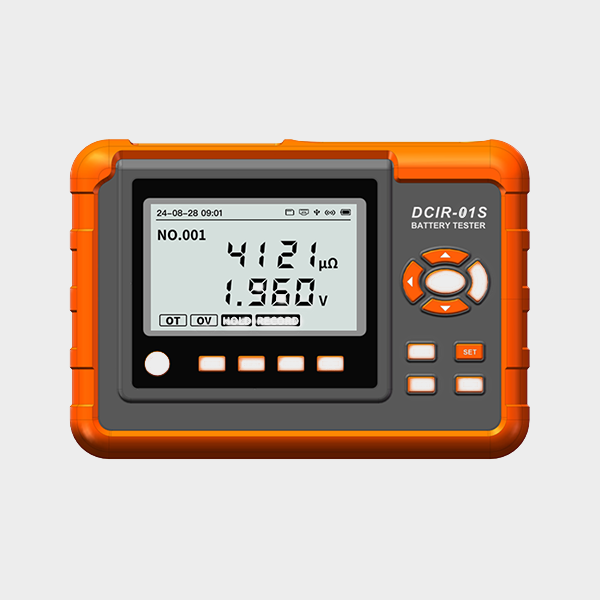

DCIR-01S
Battery Tester
The DCIR-01S Battery Tester delivers precise, efficient, and convenient measurement of battery internal resistance and voltage. Featuring an integrated automatic testing mechanism, the tester provides instant battery evaluation based on user-defined thresholds, ensuring early problem identification and prevention of battery aging and potential anomalies to improve the reliability and longevity of batteries.
Compatible with lead-acid, nickel-cadmium, nickel-zinc, lithium-ion, and other battery types, this portable tester is ideally designed for efficient battery maintenance and testing.
Features:
High Accuracy
Ease-of-use
Extended Operational Time
Safe & Reliable
Functions of DCIR- 01S Battery Tester
| Items | Description |
| Collection | Collect 1~16V battery voltage and 50~65535uΩ internal resistance |
| Diagnosis | Allow users to calculate and compare the deviation of test values from IR benchmark values and estimate the battery status (PASS/WARNING/FAULT) |
| Logging | Automatically capture measured values in real-time, and with a large memory capacity of 8GB, all data can be saved, reviewed and downloaded on PC for further analysis. |
Specifications of DCIR- 01S Battery Tester
| Items | Description |
| Environment | Indoor/Pollution level 2 |
| 600V CAT III (lower to CAT IIl after installing the detector cap) | |
| Altitude: 0~2000m | |
| Temperature: 0~40°C | |
| Humidity: 80%RH (non-condensing) | |
| Power supply | Alkaline 5 battery*8 cells |
| Battery | Approx.60 hours (without backlight,battery model:Nanfu Polyring 4) |
| Dimension | Approx.210W*146H*56D mm |
| Weight | Approx.900g |
| Screen | 240*128 DOTS OLED module |
| Storage | 1-channel SD card port |
| Communication port | LAN/USB-C |
| Electrical isolation | 1000VAC |
| Reference | Regulatory: IEC 61010EMC: IEC61326 |
| Protection level | IP40 |
| Response | 3~20s |
Request a Free Quote
