When mains power is normal, UPS batteries are usually in standby mode. But when mains power suddenly fails, the battery must take over the load within an extremely short time and provide continuous backup power to the UPS.
This means that UPS batteries do not face ordinary long-duration discharge, but a typical short-duration, high-power, fast-response scenario.
Therefore, an easily overlooked question is:
When a UPS suddenly requires the battery to provide a large amount of power, can the battery maintain a stable output voltage?
Why Does Load Variation Affect the Power Output of UPS Batteries?
During battery discharge, the terminal voltage is not completely fixed.
When the UPS load increases, the battery must supply a larger current. As current increases, the voltage loss caused by the battery’s internal resistance becomes more pronounced.
One basic relationship can be expressed as:
Voltage Drop = Current × Internal Resistance
Therefore, when a UPS suddenly enters a high-power operating state, the following occurs:
higher load → higher current → more obvious voltage drop
There is also a direct relationship between battery voltage and power:
Power = Voltage × Current
If the battery shows a significant voltage drop under high load, the system will need a higher current to maintain the same power output; and higher current may further increase voltage loss.
Therefore, the battery’s voltage behavior under high load is closely related to how much power it can actually deliver to the UPS.
This is also why UPS batteries cannot be evaluated only by “how many Ah” they have.
For UPS systems that usually need only a few minutes of backup time, although the battery operates for a very short period, it must rapidly deliver high-power output during that time. Whether the battery can maintain a stable voltage response when the load increases is an important part of its actual power delivery capability.
How Does Gerchamp NiZn Battery Address This?
The voltage stability of a battery is affected by multiple factors, including internal impedance, high-rate discharge capability, and the battery’s own electrochemical and structural design.
Gerchamp NiZn batteries are designed for the short-duration, high-power requirements of UPS applications.
Low Internal Resistance Reduces Voltage Loss Under High Current

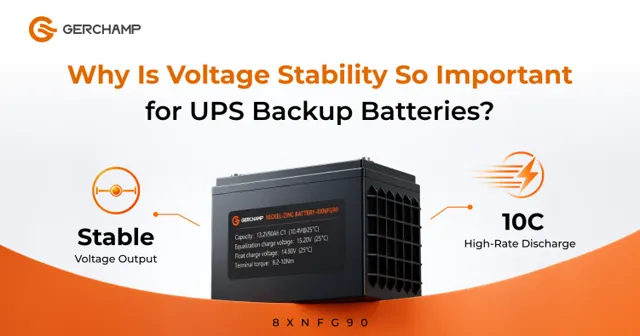

The internal resistance of the Gerchamp 8XNFG90 is as low as ≤3 mΩ.
Lower internal resistance helps reduce voltage loss during high-current discharge, enabling the battery to maintain a more stable voltage response as the load increases.
10C High-Rate Discharge Meets Instantaneous Power Requirements
Voltage stability depends not only on the voltage itself, but also on whether the battery can handle the UPS’s sudden increase in power demand.
Gerchamp NiZn batteries support up to 10C high-rate discharge, meaning that the battery is capable of delivering high power in a short time.
In UPS applications, the significance of 10C is not merely “faster discharge,” but helping the battery meet instantaneous high-power demand when a power event occurs.
Therefore, low internal resistance and high-rate discharge capability jointly support stable power delivery by reducing voltage loss and supporting high-power output, respectively.
Conclusion
For UPS backup batteries, what matters is not only how much energy is stored, but also whether, when the load is actually taken over, that energy can be stably converted into the required power. This is also why voltage stability deserves attention.
Short-duration, high-power, fast-response UPS applications place requirements on battery power delivery capability that differ from those of ordinary energy storage applications.
Through low internal resistance, up to 10C high-rate discharge, and battery design targeted at high-power applications, Gerchamp NiZn provides stable and efficient backup power support for UPS systems.
