Why does the nickel‑zinc battery use an aqueous alkaline electrolyte?
Battery safety depends not only on the battery management system (BMS) and protective structures, but more fundamentally on the battery’s own chemistry.
For backup batteries used in data centers, AI infrastructure, and critical power systems, the battery must simultaneously deliver high power output, fast response, and long‑term stable operation, with safety being a foundational factor in the overall system design.
The Gerchamp Nickel Zinc Battery employs a nickel‑zinc chemistry that includes a nickel‑based positive electrode, a zinc‑based negative electrode, and an aqueous alkaline electrolyte.
This aqueous‑based chemistry enables the nickel‑zinc battery to maintain high‑rate discharge capability while offering safety characteristics that distinguish it from traditional battery technologies.
Why does an aqueous alkaline electrolyte enhance the safety of nickel‑zinc batteries?
Many high‑performance batteries today use organic electrolyte systems.
For example, lithium‑ion batteries typically use organic electrolytes to support higher energy density.
However, organic solvents are flammable. When a battery is subjected to severe overcharge, mechanical damage, or thermal abnormalities, internal side reactions can cause temperatures to rise rapidly, further increasing the risk of thermal runaway.
In contrast, the Nickel Zinc Battery uses an aqueous alkaline electrolyte system, with potassium hydroxide (KOH) aqueous solution as the main component.
Because a water‑based electrolyte does not possess the combustion characteristics of organic solvents, the nickel‑zinc battery does not form the sustained thermal‑runaway propagation mechanism typical of lithium‑ion batteries.
The Gerchamp Nickel Zinc Battery has passed UL9540A testing, showing no thermal runaway propagation under the test conditions.
This inherent safety advantage, derived from the chemistry itself, allows nickel‑zinc batteries to reduce dependence on complex thermal management and fire protection systems, providing a more reliable backup power option for data centers and critical infrastructure.
How does an aqueous alkaline electrolyte differ from other battery technologies?
Different battery chemistries use different types of electrolytes, and the electrolyte characteristics directly affect battery safety, operating environment requirements, and system design approaches.
| Comparison Item | Nickel Zinc Battery | Lead‑Acid Battery | Lithium‑ion (LFP) Battery |
|---|---|---|---|
| Electrolyte system | Aqueous alkaline electrolyte | Sulfuric acid aqueous solution | Organic electrolyte |
| Uses flammable organic solvents? | No | No | Yes |
| Thermal runaway risk | No thermal runaway propagation under UL9540A test conditions | Risk of gas release and failure | Risk of thermal runaway |
| Source of safety characteristics | The chemistry itself | Mature structural design | Relies on BMS and thermal management |
| High‑rate discharge capability | Supports 10C discharge demand | Limited high‑rate performance | Depends on design |
| UPS application advantages | Balance of high power, safety, and space efficiency | Mature but high space and maintenance pressure | High density but stricter safety management required |
For UPS backup power applications, safety means not just avoiding incidents, but also reducing system complexity and increasing deployment certainty over long‑term operation.
How does an aqueous alkaline electrolyte affect nickel‑zinc battery performance?
The electrolyte not only determines battery safety but also directly affects the internal ion transport process.
In the Nickel Zinc Battery, the aqueous alkaline electrolyte provides the ion‑transport environment for the electrochemical reactions between the nickel positive electrode and the zinc negative electrode.
Stable ion‑transport capability supports:
- Faster charge recovery capability
- Higher‑rate discharge capability
- More stable voltage output
For UPS systems, the battery does not just need to store energy; it also needs to release power quickly during grid interruptions or load changes.
Therefore, the electrolyte system, electrode material design, and internal impedance control together determine whether the battery can meet the demands of critical power applications.
How does the Gerchamp Nickel Zinc Battery leverage its aqueous chemistry to enhance UPS performance?
The Gerchamp Nickel Zinc Battery is designed around an aqueous alkaline chemistry, combined with a nickel‑based positive electrode, zinc‑based negative electrode, and an optimised battery structure to achieve high‑power backup capability.

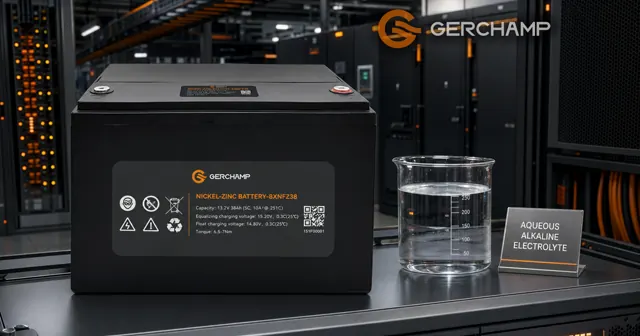

Taking the Gerchamp 8XNFZ38 Nickel Zinc Battery as an example, this product features a 13.2V, 38Ah design with the following specifications:
| Parameter | Gerchamp 8XNFZ38 |
|---|---|
| Voltage | 13.2V |
| Capacity | 38Ah |
| Volumetric energy density | 129.4Wh/L |
| Gravimetric energy density | 64.3Wh/kg |
| Discharge rate | 10C |
| Operating temperature range | –20°C to 55°C |
| Design life | 15 years |
These performance metrics demonstrate how the Nickel Zinc Battery balances safety, high‑rate output, and deployment flexibility.
At the same time, Gerchamp also offers the 8XNFG90 Nickel Zinc Battery and cabinet‑based solutions built with nickel‑zinc cells, providing flexible options for different UPS capacity requirements.
Why is an aqueous alkaline electrolyte suitable for UPS backup power?
UPS applications typically have several core characteristics:
First, the backup runtime is usually short, but it requires instantaneous high‑power output.
Second, the system must remain in standby for long periods and respond immediately in the event of a sudden power outage.
Third, critical facilities such as data centers are increasingly concerned about safety, space utilisation, and lifecycle costs.
The Nickel Zinc Battery, with its aqueous alkaline electrolyte, combines high‑rate discharge capability with inherent safety advantages.
Compared with battery systems that rely on complex safety management measures, the nickel‑zinc battery reduces safety risks through its own chemical structure while meeting the fast‑response and reliable‑operation requirements of modern UPS systems.
Conclusion
The advantages of the Nickel Zinc Battery come not only from the nickel and zinc material combination but also from its unique aqueous alkaline chemistry.
By using a non‑flammable aqueous electrolyte, the nickel‑zinc battery can achieve higher safety certainty while maintaining high power performance.
For AI data centers, UPS systems, and critical infrastructure, future backup power technologies will need not only higher performance but also more reliable and safer chemical foundations.
The Gerchamp Nickel Zinc Battery, through its aqueous alkaline system, electrode design, and system‑level engineering optimisation, offers a backup power solution that balances performance, safety, and reliability for next‑generation critical power applications.
