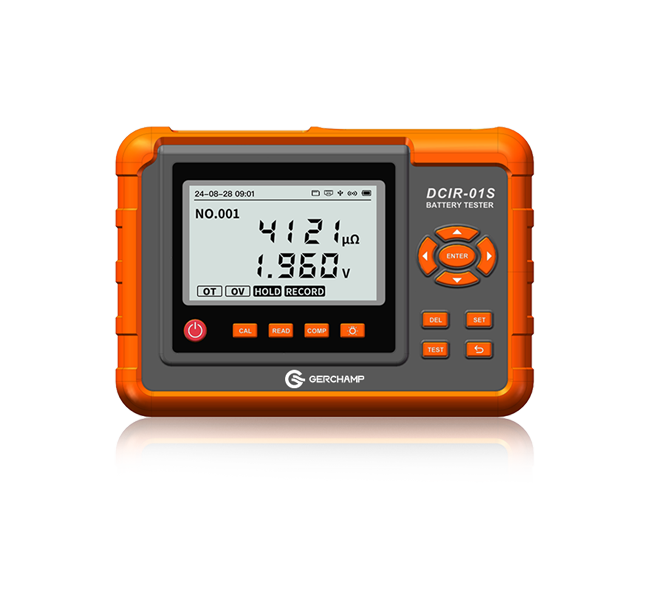

The DCIR-01S Battery Tester delivers precise, efficient, and convenient measurement of battery internal resistance and voltage. Featuring an integrated automatic testing mechanism, the tester provides instant battery evaluation based on user-defined thresholds, ensuring early problem identification and prevention of battery aging and potential anomalies to improve the reliability and longevity of batteries.
Compatible with lead-acid, nickel-cadmium, nickel-zinc, lithium-ion, and other battery types, this portable tester is ideally designed for efficient battery maintenance and testing.
Sampling error <=1%: Support 24-bit ADC sampling,with reliable and precise measurement values.
High anti-interference: Adopt DC smallcurrent discharging detection method, which has strong anti-interference capability without damaging the batteries.
User-friendly operation: Support automatic processing of testing-calibration-judgment, easy data upload to PC.
Sequence measurement: With built-in Autohold, Autoswitch and other functions, the device enables efficient batch testing without repeatedly pressing“TEST”button.
Low energy consumption: Support 60-hour continuous operation, with power-off consumption 0.01uA.
Energy-saving function: Automatically activate energy-saving mode after 5 minutes of no operation.
Enhanced safety protection: Isolate from strong and weak electricity and automatic alarm of over temperature, over-current, short circuit, overvoltage, and reverse connection.
Reliable system initialization: Support complete self test after power-on to ensure the reliable operation of tester.
| Items | Description |
| Collection | Collect 1~16V battery voltage and 50~65535uΩ internal resistance |
| Diagnosis | Allow users to calculate and compare the deviation of test values from IR benchmark values and estimate the battery status (PASS/WARNING/FAULT) |
| Logging | Automatically capture measured values in real-time, and with a large memory capacity of 8GB, all data can be saved, reviewed and downloaded on PC for further analysis. |
| Items | Description |
| Environment | Indoor/Pollution level 2 |
| 600V CAT III (lower to CAT IIl after installing the detector cap) | |
| Altitude: 0~2000m | |
| Temperature: 0~40℃ | |
| Humidity: 80%RH (non-condensing) | |
| Power supply | Alkaline 5 battery*8 cells |
| Battery | Approx.60 hours (without backlight,battery model:Nanfu Polyring 4) |
| Dimension | Approx.210W*146H*56D mm |
| Weight | Approx.900g |
| Screen | 240*128 DOTS OLED module |
| Storage | 1-channel SD card port |
| Communication port | LAN/USB-C |
| Electrical isolation | 1000VAC |
| Reference | Regulatory: IEC 61010 EMC: IEC61326 |
| Protection level | IP40 |
| Response | 3~20s |
