What Is Internal Resistance in a NiZn Battery?
The performance of a nickel‑zinc battery depends not only on its energy storage capacity, but also on the efficiency of internal current transfer. Among the key engineering metrics, internal resistance is one of the most important indicators of battery performance.
In simple terms, internal resistance represents the opposition that current encounters when flowing through the internal structure of a battery. During charge and discharge, current must pass through the electrode materials, electrolyte, and internal connection structures, all of which introduce some degree of resistance.
For a nickel‑zinc battery, internal resistance is influenced by several factors, including:
| Influencing Factor | Effect on Internal Resistance |
|---|---|
| Electrode materials | Affect electron transfer efficiency and electrochemical reaction kinetics |
| Electrolyte system | Affect ion mobility and internal transport resistance |
| Electrode structure | Affect reaction area and current path |
| Internal connection design | Affect overall current transfer efficiency |
When internal resistance increases, the energy loss caused by current passing through the battery also increases.
According to Ohm’s law: Voltage Drop = Current × Resistance
Under high‑current discharge conditions, even small differences in internal resistance can lead to noticeable voltage variations. Therefore, for UPS applications that require fast power output, reducing internal resistance is an important direction for improving battery performance.
Why Does Internal Resistance Affect NiZn Battery Performance?
The backup batteries in a UPS system must deliver energy support quickly when grid anomalies or load changes occur.
Unlike general energy storage applications, UPS batteries typically face short‑duration, high‑current discharge processes. In this process, internal resistance directly affects the battery’s output capability and the stability of the UPS system.
A higher internal resistance leads to more pronounced voltage sag during discharge, limiting the battery’s ability to deliver its full power output. Conversely, lower internal resistance reduces losses during current transfer, allowing the battery to maintain a more stable output voltage.
For UPS battery performance, low internal resistance brings the following key benefits:
| Performance Metric | High Internal Resistance | Low Internal Resistance |
|---|---|---|
| Voltage stability | More pronounced voltage sag under discharge | Maintains more stable output |
| Power output | Limited high‑current delivery capability | Supports fast power delivery |
| Energy loss | Increased internal losses | Improved discharge efficiency |
| Heat generation | Higher thermal losses | Reduced operating losses |
Therefore, in mission‑critical applications such as data centres, UPS battery selection cannot focus solely on capacity; it must take into account multiple performance indicators, including internal resistance.
How Does Low Internal Resistance Improve Transient Response in NiZn Batteries?
One of the most critical functions of a UPS system is to maintain continuous power supply when an input anomaly occurs. When the mains fails or a transient load change happens, the UPS must quickly switch to battery power. During this process, the UPS battery needs to deliver a large current within an extremely short time.
For a nickel‑zinc battery, low internal resistance reduces voltage losses during high‑current discharge, enabling the battery to support UPS operation more stably.
For example, when a UPS battery outputs a high current:
- If the internal resistance is high, the current passing through the battery causes a greater voltage drop.
- If the internal resistance is low, the battery can transfer current more efficiently and maintain a more stable output voltage.
Therefore, a low‑internal‑resistance battery is not merely about a lower resistance value; it represents better power response capability under real‑world operating conditions.
This is why, in UPS applications, internal resistance has become an increasingly important metric for evaluating battery performance.
What Design Factors Determine the Internal Resistance of a NiZn Battery?
The internal resistance of a nickel‑zinc battery is not determined by a single component, but rather by the entire battery design system. From the electrochemical system to the internal structure, every design aspect affects the final resistance level.
Electrode Material Design
Electrode materials directly affect electron transfer efficiency and electrochemical reaction kinetics. In a nickel‑zinc battery, the nickel electrode and zinc electrode each undertake different electrochemical reactions. Optimised electrode materials improve reaction efficiency and reduce barriers to charge transfer.
At the same time, zinc electrode design must address structural changes that may occur over long‑term operation, such as zinc dendrite control. Therefore, electrode design not only affects cycle stability but also influences overall internal resistance performance.
Electrolyte System Design
In addition to electrode materials, the electrolyte system is another critical factor affecting nickel‑zinc battery performance. The electrolyte is responsible for ion transport between the positive and negative electrodes, and its transport efficiency directly impacts internal resistance.
For nickel‑zinc batteries, the electrolyte system not only affects charge‑discharge efficiency but is also closely related to safety performance. By optimising the electrochemical system, nickel‑zinc batteries can achieve higher safety levels while maintaining performance output.
Internal Structure Design
The internal structure of the battery determines the current path, including:
- Electrode arrangement
- Internal connection architecture
- Current routing
A more rational structural design reduces obstacles in current transfer, thereby lowering overall internal resistance.
Thus, low internal resistance is not achieved by a single material alone; it results from the combined optimisation of battery chemistry, structural design, and manufacturing processes.
How Does Gerchamp Achieve Low Internal Resistance in Its NiZn Batteries?
Gerchamp nickel‑zinc batteries are designed specifically for UPS applications, with optimisations in internal structure, electrode materials, and overall design to enhance power output capability and operational stability.

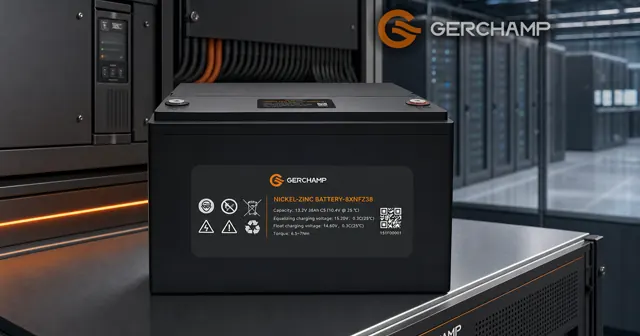

Taking the Gerchamp 8XNFZ38 nickel‑zinc battery as an example, its published specifications are as follows:
| Parameter | Value |
|---|---|
| Battery Chemistry | Nickel‑Zinc |
| Nominal Voltage | 13.2 V |
| Capacity | 38 Ah |
| Nominal Energy | 0.5 kWh |
| Internal Resistance | ≤5 mΩ |
| Maximum Discharge Current | 380 A |
| Maximum Continuous Discharge Power | 3800 W |
| Energy Density | 129.4 Wh/L |
| Specific Energy | 64.3 Wh/kg |
The ≤5 mΩ internal resistance demonstrates Gerchamp’s design capability in current transfer efficiency.
Combined with a maximum discharge current of 380 A and a maximum continuous discharge power of 3800 W, the 8XNFZ38 meets the high‑current output requirements of UPS applications.
The Gerchamp nickel‑zinc battery platform also includes different configurations, such as the 8XNFZ38 and 8XNFG90 models, offering a range of product choices for UPS systems.
Internal Resistance Is a Critical Metric for Evaluating NiZn Battery Performance
For UPS applications, capacity determines how much energy the battery can store, while internal resistance determines how efficiently the battery can release that energy. Through the coordinated design of electrode materials, electrolyte systems, and internal structures, nickel‑zinc batteries can achieve lower internal resistance, more efficient power output, and more stable operation.
As data centres and critical infrastructure place ever‑higher demands on UPS reliability, internal resistance has become a key engineering metric for evaluating next‑generation UPS battery performance. Through continuous optimisation of battery design, Gerchamp nickel‑zinc batteries provide more stable, efficient, and safe backup energy solutions for modern UPS systems.
